Comparison of Tangential and Intermeshing Internal Mixers

Structural, Mixing Mechanism and Performance Differences

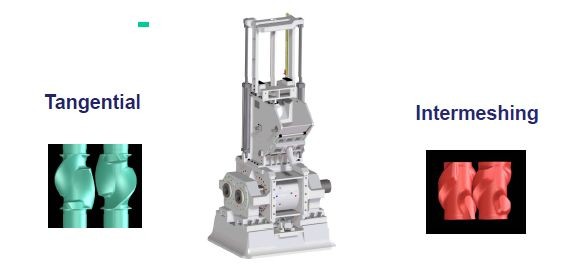

In the mixing field of rubber, polymer materials and composite materials, internal mixers are mainly divided into tangential and intermeshing types based on rotor working principles. They differ significantly in rotor structure, transmission mode, mixing mechanism and process performance, directly affecting mixing efficiency, dispersion quality, heat generation control and energy consumption. Below is a systematic comparison from structural principles, mixing processes and key performance dimensions.

I. Differences in Rotor Structure and Transmission Mode

Tangential Internal Mixer

The two rotors are arranged tangentially with parallel axes but no intermeshing. They operate at different speeds (asynchronous) during operation, forming a strong shear field through speed difference. The gap between the rotor tip and the mixing chamber wall is small, serving as the main shear zone.

Intermeshing Internal Mixer

The two rotors are designed for mutual meshing and driven by constant-speed connecting gears (synchronous) with identical rotational speeds. The large-diameter end of one rotor interlocks with the small-diameter end of the opposite rotor, creating an extremely narrow gap. Mixing mainly occurs in the meshing zone between the two rotors.

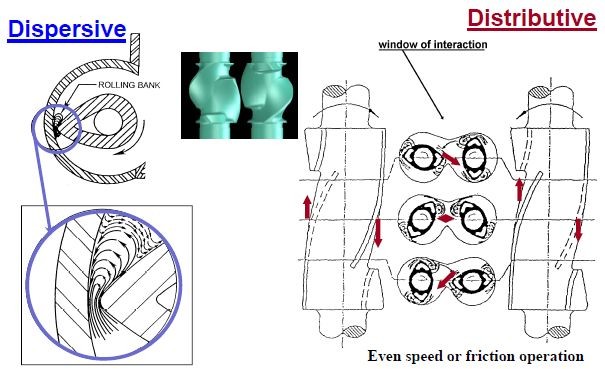

II. Working Principle of Tangential Internal Mixer

The tangential internal mixer is characterized by strong shearing and high throughput:

1.  Mixing primarily takes place in the narrow gap between the rotor tip and the mixing chamber wall, where materials are repeatedly squeezed, sheared and stretched for rapid crushing and dispersion (dispersive mixing).

2.  The spiral structure of the rotor blades drives materials to circulate axially and radially, forming a “window of interaction” between the two rotors to achieve distributive mixing of components.

3.  With a large rotor gap and smooth feeding, it is suitable for rapid mixing of highly filled and high-viscosity materials, delivering high production efficiency.

Key Features: Strong shearing, high efficiency, fast heat generation, average dispersion uniformity, low energy consumption, low discharge temperature.

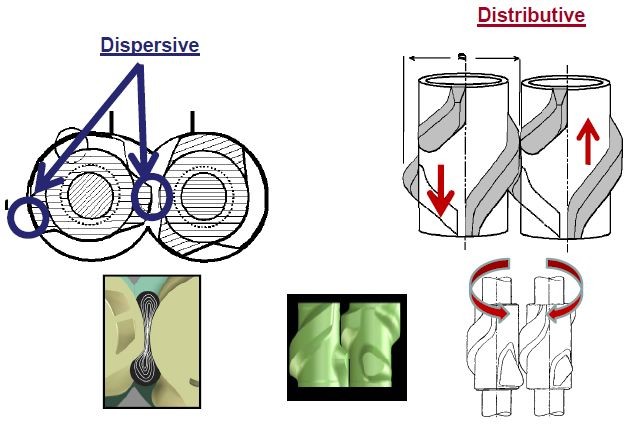

III. Working Principle of Intermeshing Internal Mixer

The intermeshing internal mixer excels at superior distribution, low heat generation and high uniformity:

1.  Mixing occurs simultaneously in the rotor-chamber wall gap and rotor-rotor meshing gap. The intense “squeezing-kneading” action between the two rotors ensures thorough crushing and dispersion of agglomerates.

2.  The spiral rotor blades force materials to move back and forth axially, creating continuous and stable material exchange in the meshing zone for excellent distributive mixing.

3.  Due to synchronous rotor operation and narrow gaps, it is highly sensitive to filling factor with a slightly lower feeding speed, but offers significantly better mixing uniformity and batch stability than tangential mixers.

Key Features: Excellent dispersion uniformity, slow heat generation, stable temperature control, slightly higher energy consumption, higher discharge temperature, high sensitivity to filling rate.

IV. Key Performance Comparison

V. Application Recommendations

● Choose Tangential Mixer: Tire, conveyor belt, ordinary rubber products and other mass production with high efficiency requirements; materials with moderate viscosity and average dispersion uniformity requirements.

● Choose Intermeshing Mixer: High-end rubber products, special rubber compounds, silica formulations, low heat generation processes, laboratory R&D and high-precision formula development; requiring highly dispersed fillers and good batch consistency.
